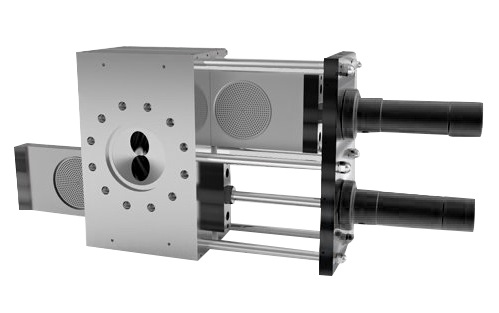

Double-plate Four-station Screen Changer

Quick Inquiry

This series of screen changers uses two screens at the same time. When changing the screen, one screen works and the other screen is replaced, without interrupting the material flow or stopping the machine to change the screen.

Application

Pelletizing, pipes, plates, sheets, cast film, strapping tape

Online Chat Leave Message

Introduction

This series of screen changers uses two screens at the same time. When changing the screen, one screen works, and the other screen is replaced, without interrupting the material flow or stopping the machine to change the screen.

Parameter

This series of screen changers are used for dual screens at the same time. When changing the screen, one screen works and the other screen is replaced, without interrupting the material flow and changing the screen without stopping the machine.
Two filter screens work at the same time, and the filtration area is twice that of a single screen.
Filter diameter 100mm-200mm
Output 150kg/h-1500kg/h
Filter area 300cm²-1250cm²
Heating power 4.4Kw-13Kw
Working temperature ≤350℃
Voltage 220V/380V
Applicable material pressure ≤30Mpa

Feature

Suitable for all polymer extrusion production requirements.
Equipped with filter filling and exhaust structure.
Uninterrupted filtration during the screen changing process will not cause obvious fluctuations in product production, and improve the stability of product quality. It can withstand a melt pressure of 25-30MPa.
The four-channel design significantly increases the filtration area, reduces the pressure fluctuation of screen changing, and meets the production requirements of higher output and higher quality.
The exhaust system is designed to fully remove the gas contained in the material and the porous plate to be replaced, prevent the gas from entering the product during the screen replacement process, and improve the quality of the product.

Application

Pelletizing, pipes, plates, sheets, cast film, strapping tape

Case

Batong Intelligent will provide personalized services based on the different needs of customers, providing customers with a better service experience.

Photo of screen changer applied to pipe production line
