As an efficient polymer filtration equipment, screen changers play a crucial role in plastic extrusion processing. There are various types of screen changers, such as single plate, double plate, double piston, double filter cylinder, and self cleaning screen changers, etc.
How to select the right screen changer from numerous options? It requires comprehensive consideration of raw materials, working conditions, end products, and other factors:

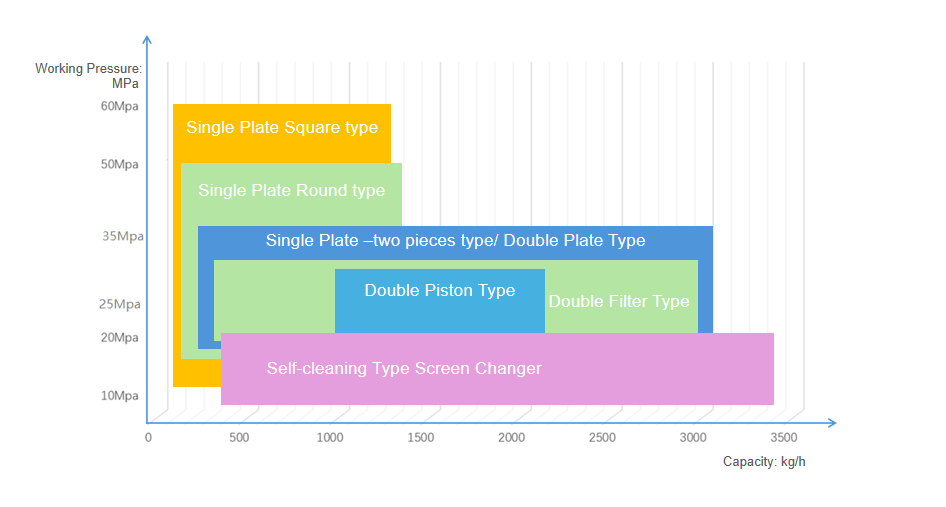

1.Primary factors: Operating pressure and output
Due to differences in processed products and processes, the operating pressure of various extrusion lines ranges from 10MPa to 60MPa. Generally, single plate screen changers, with their simple structure, can withstand the highest operating pressure, while self cleaning screen changers have the lowest pressure resistance.
Conversely, single plate screen changers have limited filtration capacity due to their small filtration area. In contrast, self-cleaning screen changers, with their unique design, enable efficient and continuous filtration, with a maximum output of up to 3000kg/h.
2.Next: Production process requirements
Determine whether need to change screen without stopping the machine (or reducing screw pressure). For example, production lines for film blowing, wire drawing, and pipe extrusion require continuous operation, thus demanding non-stop screen changes with minimal pressure fluctuation during the process—otherwise, product quality or output may be compromised. For such scenarios, double piston or double filter cylinder screen changers are recommended over plate type ones.
3.Filtration precision considerations
Plate type or piston type screen changers offer adjustability, as they can be equipped with steel mesh of different precisions based on needs. However, self cleaning screen changers, with their internal screens having a maximum precision of 120 mesh, cannot meet some high-precision filtration requirements.
Batong Screen Changer—your expert in melt filtration. With a professional design and processing team, we are ready to provide you with the most suitable solutions and high-quality products once we understand your needs.
